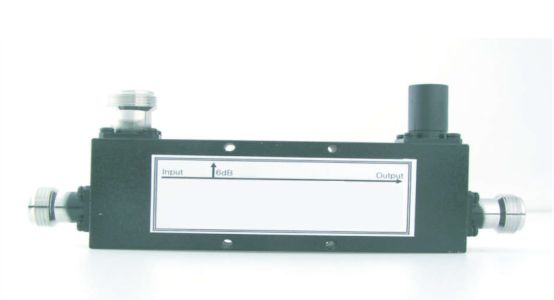

2000-18000 MHz Directional Coupler with the N-type connectors
Model
AM2000-18000DC1049
PRODUCT SPECIFICATIONS
| Parameter | Value |
|---|---|
| frequency range | 2000-18000MHz |
| Coupling value | 40 dB ±1.4 dB |
| Insertion Loss | 0.5 dB Max. |
| Directivity | 12 dB @ 2-18 GHz |
| Connector Type | N-Type |
| VSWR | ≤1.4:1 |
| Power Handling | 400 W Avg. |
| Dimensions | 4.09 x 0.94 x 1.2 Inches |
